Features

  • One piece design
  • Sand-Grip in grooves of wedge allow maximum support to the cable
  • Will not be supplied undrilled
  • Use with all types of insulations at 600V

Applications

  • Must be used with Cable Support Bodies.

Standard Material

  • Maple hardwood

Standard Finish

  • Black lacquer paint with sandy grit grooves

Cable Wedges are made to order. Each piece is manufactured to the customer’s requirement and not returnable.

To Place An Order

Download the appropriate order form. Fill out the required specs and email it back to needitnow@valleywoodcraft.com.

More Information

Cable Support Body – Stock Item – Imported. Only sold with Cable Wedges.

Cable Support Custom Wood Chock. Cable Wedges can be purchased without Cable Support Bodies.

Cable support Body and Chock assembled.

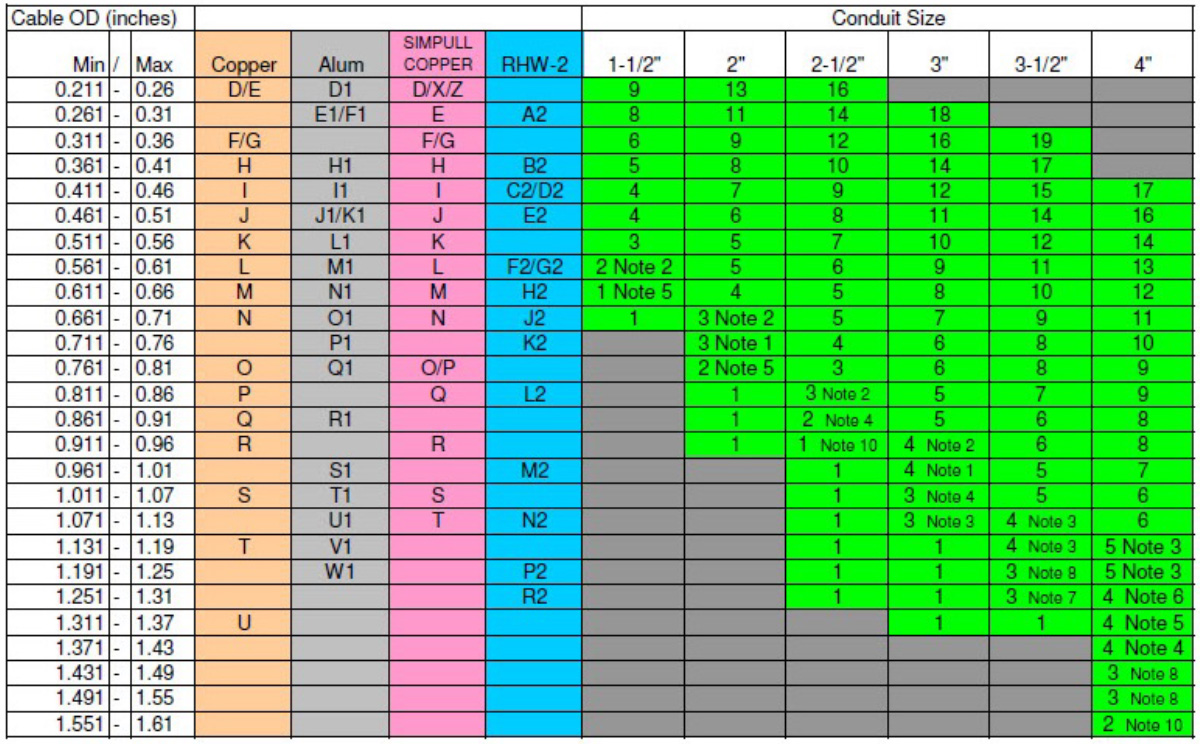

Approved Slot Chart

CHART REV DATE: 25 MAR 19

Select your conduit size and measure your cable diameter(s) which must fit within the min/max range corresponding to the quantity of cables in the white area of this chart.

Cable diameters that fall within the gray area of Conduit Size section cannot be accommodated. Therefore a 3” cable support has a cable range of 0.261” up to 1.130”. Cables smaller or larger cannot be considered.

Example: a 3” cable support will be used for 3 cables at 1.051” and 1 cable at 0.384”. Refer to the 3” conduit size column. We can only fit 3 cables between 1.011” to 1.070” but Note 4 allows an additional cable slot of .51” or smaller. This drilling will work.

Using the example above but the fourth cable is smaller at 0.216”, this drilling will not work. The 0.216” cable falls into the 0.211” to 0.260” range which is within the gray shaded area of the 3” conduit column.

Notes:

  1. One additional cable slot of .31″ or smaller allowed.
  2. One additional cable slot of .36″ or smaller allowed.
  3. One additional cable slot of .46″ or smaller allowed.
  4. One additional cable slot of .51″ or smaller allowed.
  5. One additional cable slot of .56″ or smaller allowed.
  6. One additional cable slot of .61″ or smaller allowed.
  7. One additional cable slot of .66″ or smaller allowed.
  8. One additional cable slot of .71″ or smaller allowed.
  9. One additional cable slot of .76″ or smaller allowed.
  10. One additional cable slot of .86″ or smaller allowed.

Cable Support Body

Features:

  • Threaded for Rigid Conduit and IMC
  • Tapered inside surface is knurled to grip cable
  • For two or more wires
  • For use with treadless conduit or EMT, when used with male end threadless connector
  • Use with all types of insulations at 600V
  • Only sold with Cable Wedges

Applications

  • Used to support non-armored electrical cables in vertical conduit risers

Standard Material

  • Malleable Iron

Standard Finish

  • Hot Dip Galvanized

Cable Support Custom Wood Chock

Features:

  • One piece design
  • Sand-Grip in grooves of wedge allow maximum support to the cable
  • Will not be supplied undrilled

Applications

  • For use with Cable Support Bodies
  • Cable Wedges can be purchased without Cable Support Bodies

Standard Material

  • Impregnated hardwood

Standard Finish

  • Black lacquer paint with sandy grit grooves

Installation Instructions

Step 1

Thread Cable Support Body on the end of conduit or connector in place of a regular Insulating Bushing.

Step 2

Pull cables and arrange temporary means of support.

Step 3

3a. Remove pulling compound from the cables in the area where they pass through the cable support.

3b. Place Wedge between cables as close to the top of the body as possible. Be sure to locate each cable for the proper groove.

Step 4

Gently tap the Wedge firmly into the support body.

Please note, when installing the max number of conductors the Wedge may be raised slightly above the Support Body, but not to exceed 50%.
